1.Electromagnetic 60Amp High-Power Relay JQX-58F DC12V
2.Specification
Technical Specification
| Insulation Resistance | >1000mΩ (500VDC) |
| Dielectric Strangth | Between Coil and Contacts > 2500VAC 1min |
| Between Open Contacts> 1200VAC 1min |
| Operate/Release time | < 25ms/ 25ms |
| Terminal Type | Screw |
Contact Specification
| Contact Form | 1Z, 1H, 1D |
| Contact Resistance | < 100mΩ (1A 6VDC) |
| Contact Material | AgCdO, AgSnO2 |
| Contact Capacity | 60A 250VAC/30VDC |

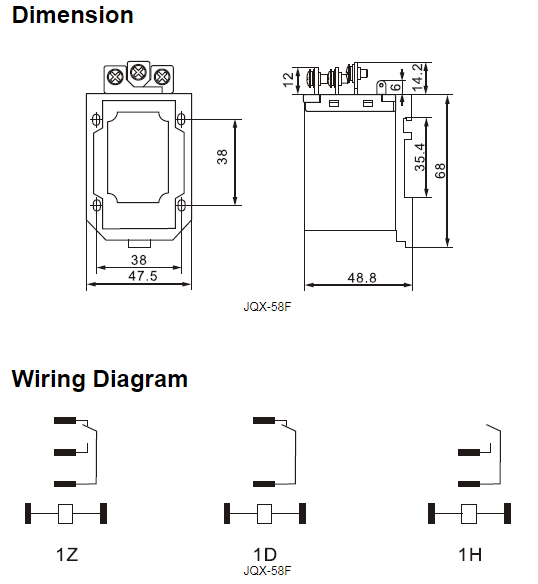

Changeover Type (Z):
In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.
Normally Open Type (H):
The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.
Normally Closed Type (D):
The contact is closed state when coil is not energized, and contact will be disconnected when coil is energized.
3. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
4. Our other product
5. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
